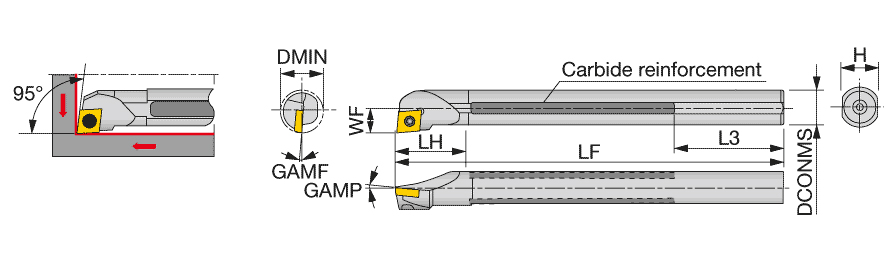

T25S-SCLCL09C
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 40 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT09T308 | Body Material | TSUPPARI |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
Product Features

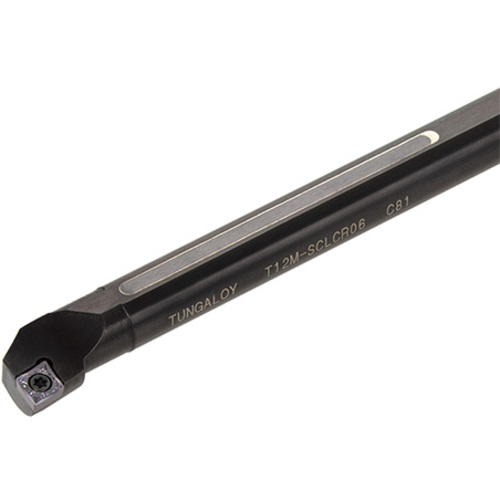

| Family Description | Screw-on boring bar, for posi 80 deg rhombic insert with 7 deg relief angle | Country of Origin | JAPAN |
| Remarks | The hole of inserts conforms to ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
2.079
