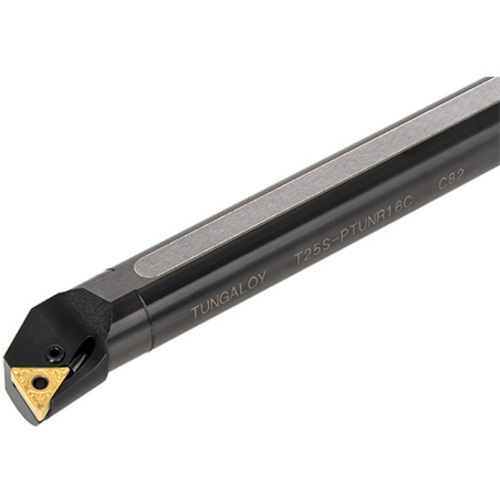

T25S-PTUNR16C

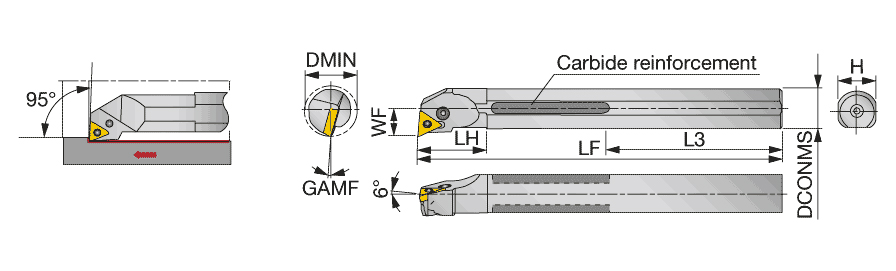

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Master Insert Identification (MIID) | TNMG160408 | Body Material | TSUPPARI |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Tsuppari-Ichiban boring bar, for negative triangle insert | Country of Origin | Japan |
| Remarks | The insert hole conforms to the ISO standard. Tool holder length may be different to the ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PTUNL** type), and the left hand insert (L) is used for the right hand toolholders (PTUNR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
2.066
