S50U-PDZNR15

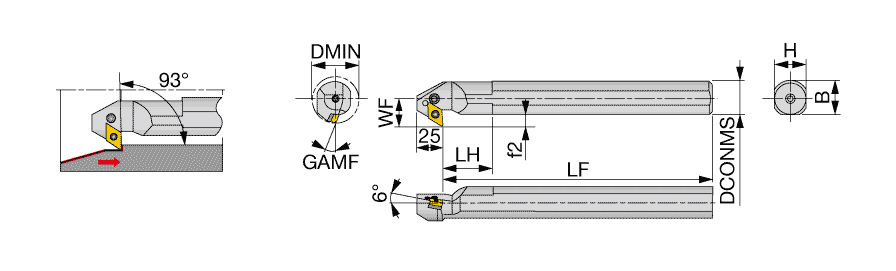

| Connection Diameter Machine Side (DCONMS) | 50 mm | Minimum Bore Diameter (DMIN) | 63 mm |
| Functional Length (LF) | 375 mm | Application | | For 55deg Rhombic insert | |
| Head Length (LH) | 65 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 47 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Width (B) | 47.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 35 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG150408 | Measurement Type | Metric |
Product Features

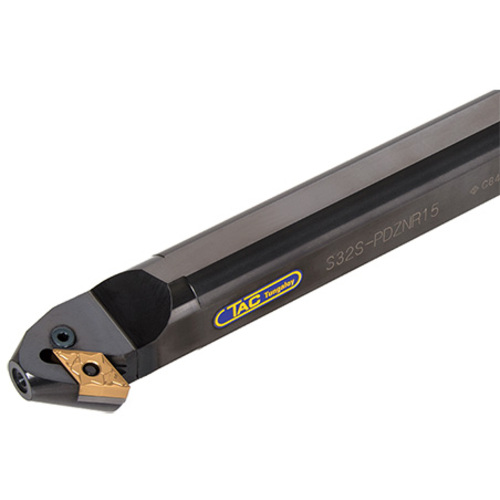

| Family Description | Lever-lock boring bar, for negative 55 deg rhombic insert | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (PDZNR** type), and the left hand insert (L) is used for the left hand toolholders (PDZNL** type). |
Shipping Info
Package Weight
12.037
