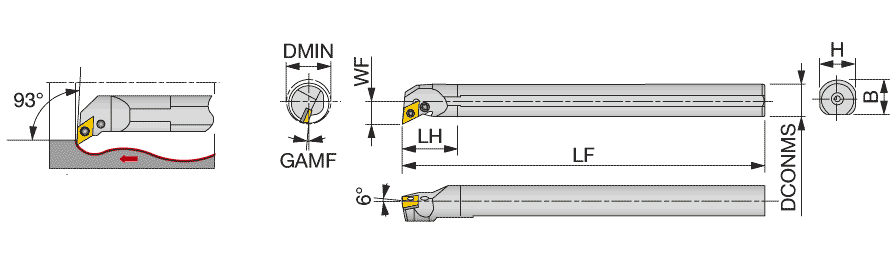

S32S-PDUNL15
| Connection Diameter Machine Side (DCONMS) | 32 mm | Minimum Bore Diameter (DMIN) | 40 mm |
| Functional Length (LF) | 250 mm | Application | | For 55deg Rhombic insert | |
| Head Length (LH) | 50 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 30 mm | Rake Angle Radial (GAMF) | 13 Degrees |
| Shank Width (B) | 29.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 22 mm | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG150408 | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock boring bar, for negative 55 deg rhombic insert | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (PDUNL** type), and the left hand insert (L) is used for the right hand toolholders (PDUNR** type). |
Shipping Info
Package Weight
3.258
