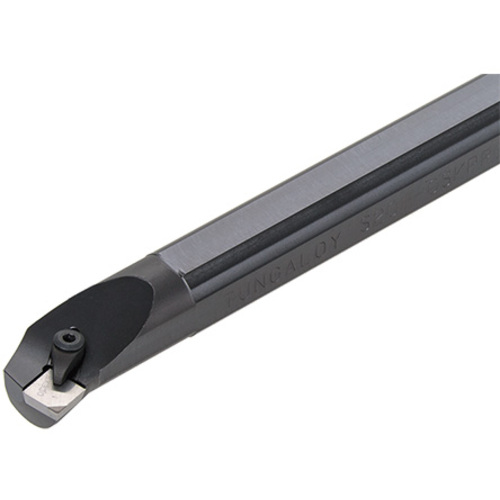

S16Q-CSKPR09

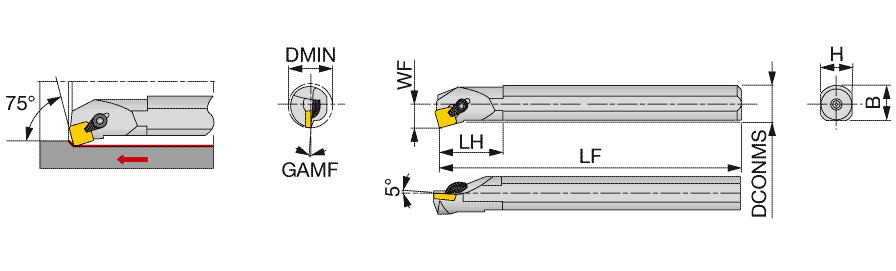

| Connection Diameter Machine Side (DCONMS) | 16 mm | Minimum Bore Diameter (DMIN) | 20 mm |
| Functional Length (LF) | 180 mm | Application | | For Square insert | |
| Head Length (LH) | 30 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -4 Degrees |
| Shank Width (B) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | SPMN090308 | Measurement Type | Metric |
Product Features
| Family Description | Clamp-on boring bar, for posi square insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | Only for inserts without hole. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (CSKPL** type), and the left hand insert (L) is used for the right hand toolholders (CSKPR** type). |
Shipping Info
Package Weight
0.699
