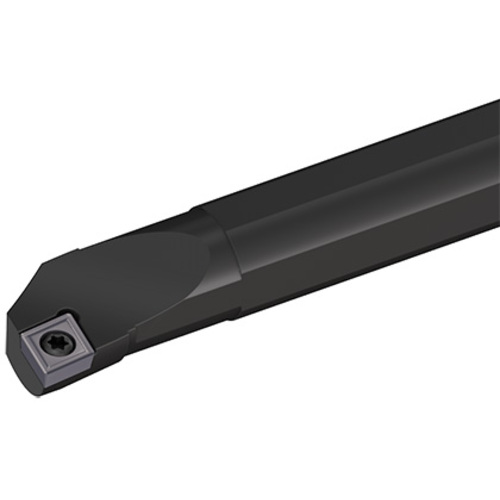

S12-SCLCR3

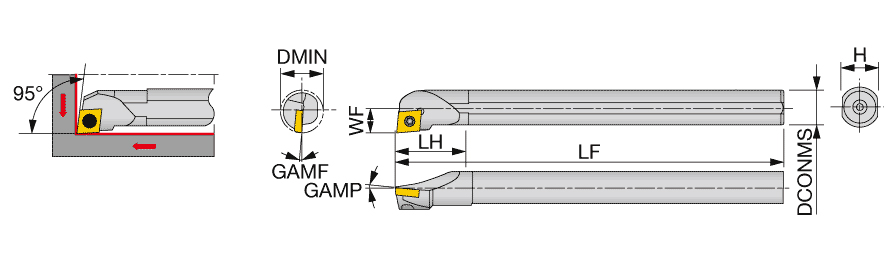

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 8″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 1.38″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 0.67″ | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Functional Width (WF) | 1/2″ | Body Material | Steel |
| Master Insert Identification (MIID) | CCMT32.52 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1″ |
Product Features
| Family Description | Screw-on boring bar for posi 80 deg rhombic insert with 7 deg relief angle | Country of Origin | Japan |
| Remarks | The hole of inserts conforms to ISO standard. When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.992
