S1214-STUPR11

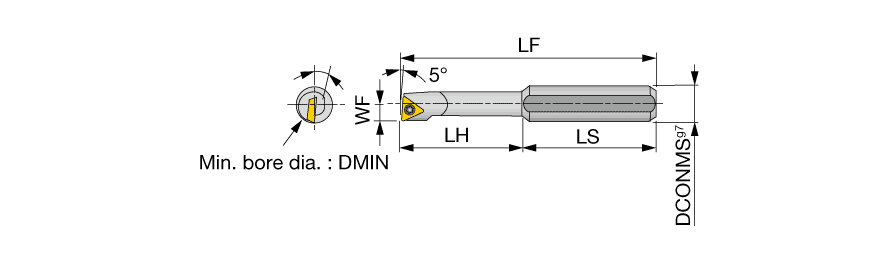

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Boring Bars | |
| Functional Length (LF) | 81 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPGT110204 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 14 mm | Measurement Type | Metric |
Product Features
| Family Description | Top-Borer Tool for posi triangle insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). |
Shipping Info
Package Weight
0.179
