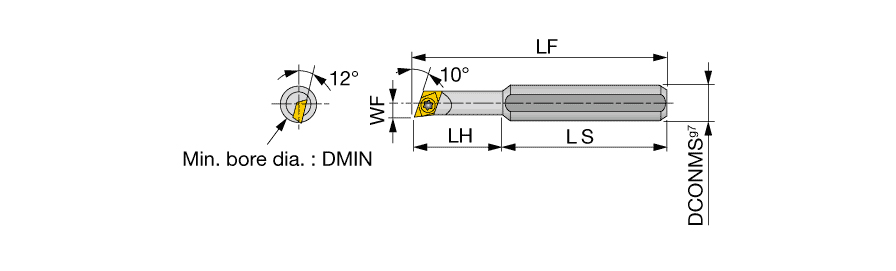

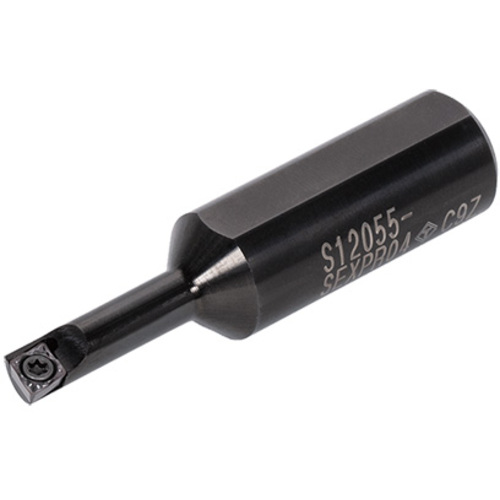

S12055-SEXPR04
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Boring Bars | |
| Functional Length (LF) | 51 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 19 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Functional Width (WF) | 2.8 mm | Body Material | Steel |
| Master Insert Identification (MIID) | EPGT040104 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5.5 mm |
Product Features
| Family Description | Top-Borer Tool for Posi 75 deg rhombic insert with 11 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SEXPL** type), and the left hand insert (L) is used for the right hand toolholders (SEXPR** type). |
Shipping Info
Package Weight
0.095
