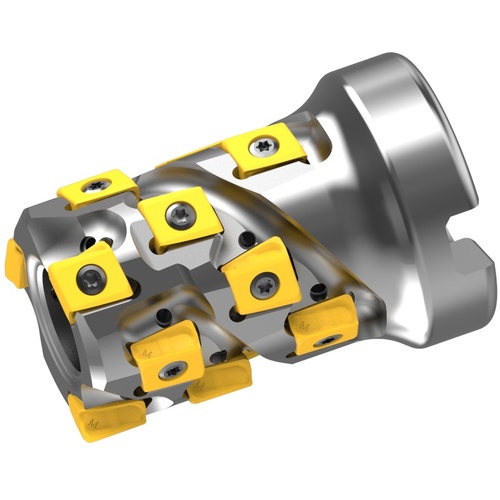

VPX200-032A03A035R15 EM
Indexable End Mill; 32 mm Dia. × 35 mm LOC × 16 mm Shank Dia. ; 3 FL ; 90 Degrees ; Series VPX200_SHELL_MM
| Cutting Diameter (DC/DCX) | 32 mm | Flute Count (NOF) | 3 |
| Cutting Diameter (DC) | 32 mm | Body Diameter (BD) | 37 mm |
| Cutting Item Count (CICT) | 15 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 35 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.71 Degrees | Series/List # | VPX200_SHELL_MM |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Functional Length (LF) | 55 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
