C16R-CTFPL11

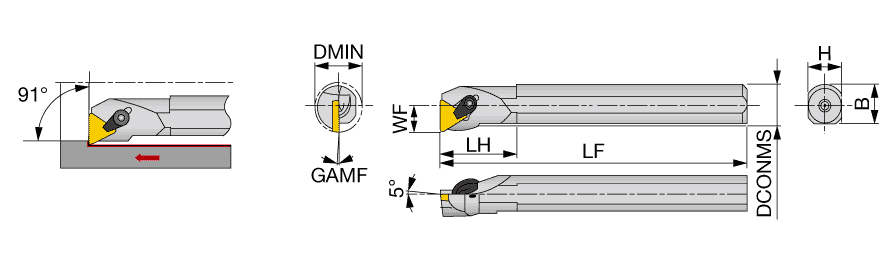

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 200 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -4 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT110304 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
Product Features

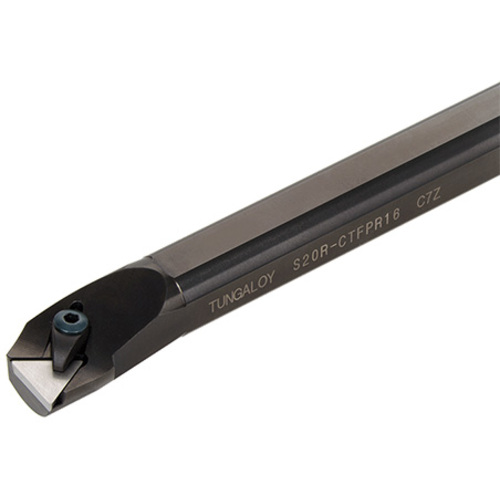

| Family Description | Clamp-on boring bar, for posi triangle insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (CTFPR** type), and the left hand insert (L) is used forthe left hand toolholders (CTFPL** type). For chipbreaker piece, click on "More Info". |
Shipping Info
Package Weight
1.314
Related Documentation

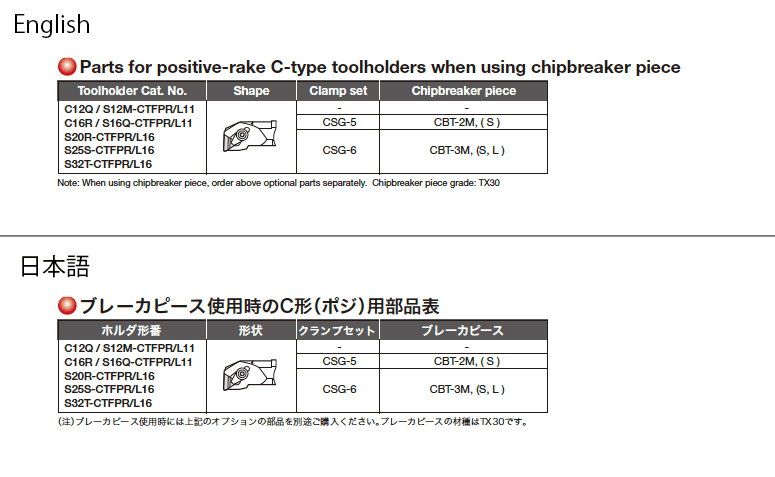

When using chipbreaker piece, order the following optional parts separately.
