A12M-SXUOL07-D140

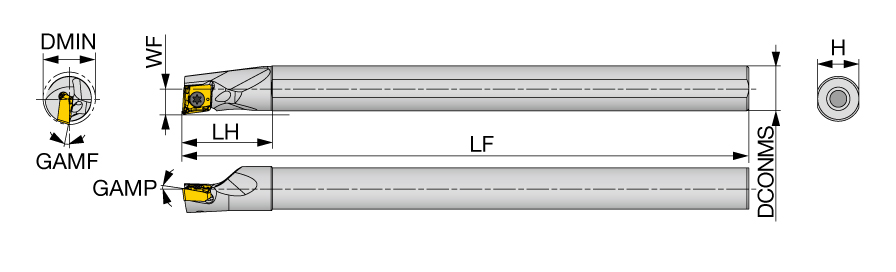

| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 24 mm | Rake Angle Axial (GAMP) | -7.2 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | 3.2 Degrees |
| Functional Width (WF) | 7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | XOMU07H304-PS | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 14 mm |
Product Features

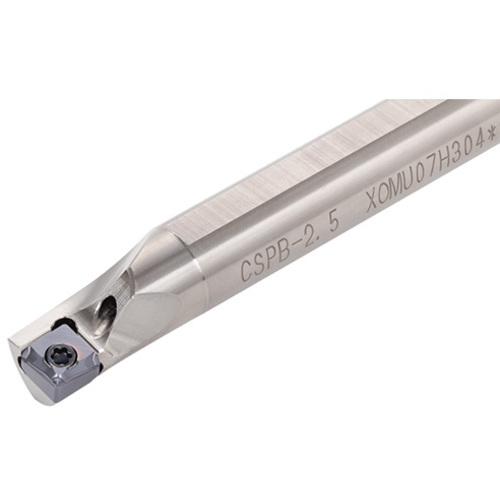

| Family Description | Screw-on boring bar for XOMU rhombic insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
