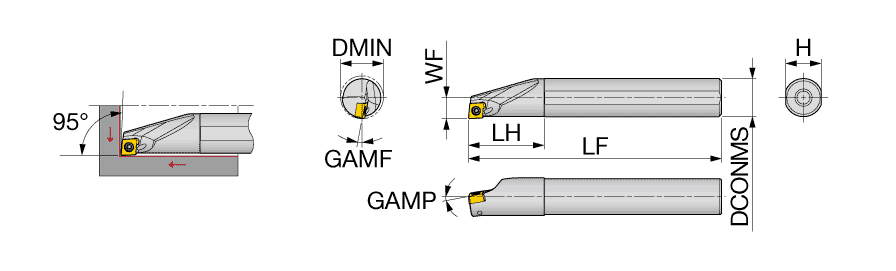

E20S-SCLXR06-D220
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 250 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 36 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Functional Width (WF) | 11 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | CXMU060304L | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 22 mm |
Product Features

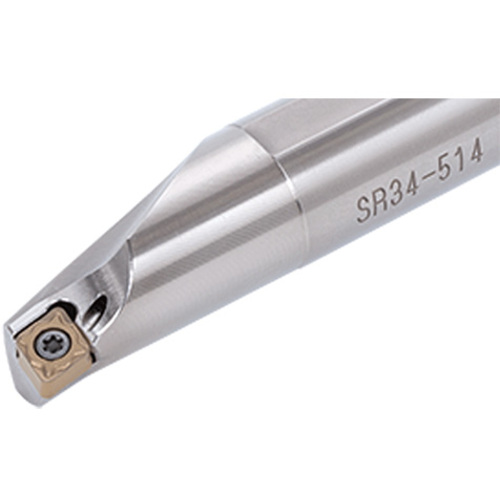

| Family Description | Screw-on boring bar for 80 deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with left hand inserts (L); and left hand toolholders (L) with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
