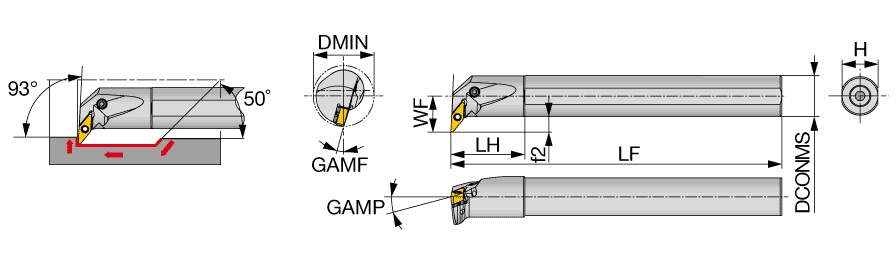

A16-PVUNR2.33-D24
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 12″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1-3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.906″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 0.859″ | Body Material | Steel |
| Master Insert Identification (MIID) | VNMG2.332E | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1-1/2″ |
Product Features

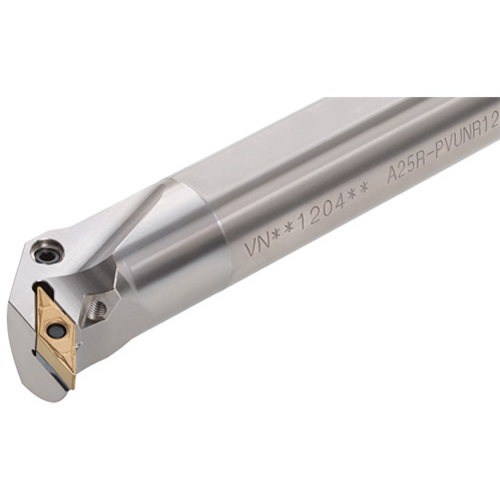

| Family Description | Lever-lock boring bar for Negative 35 deg rhombic inserts VN**2.33... | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
2.423
