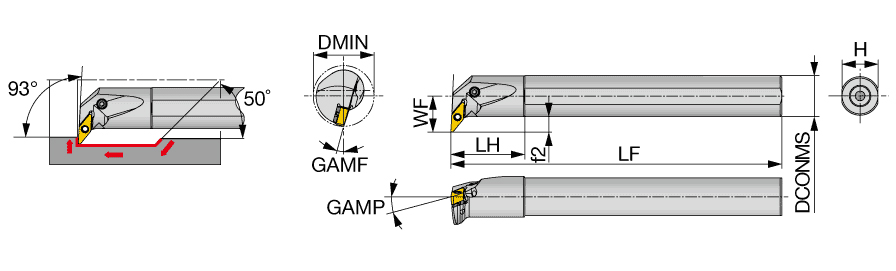

A25R-PVUNR1204-D320
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 200 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 45 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 18 mm | Body Material | Steel |
| Master Insert Identification (MIID) | VNMG120408E | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm |
Product Features
| Family Description | Lever-lock boring bar for Negative 35 deg rhombic inserts VN**1204... | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.475
