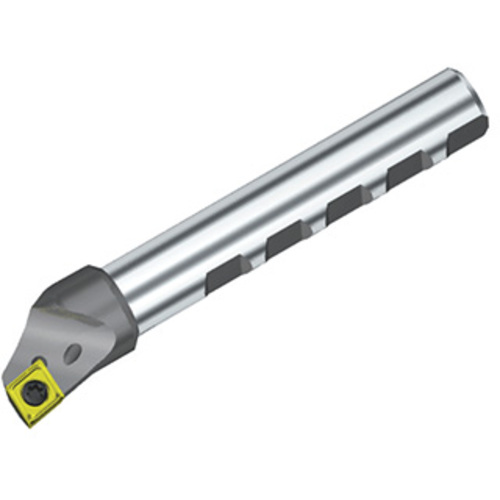

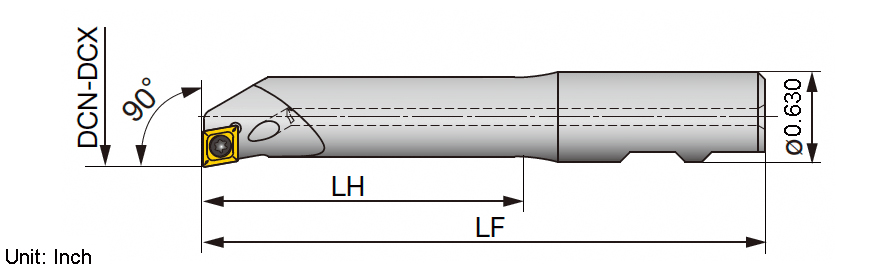

254.020.006.105
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Application | | SwissBore tools | |
| Functional Length (LF) | 4.134″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 2.835″ | Body Material | Steel |
| Master Insert Identification (MIID) | CCMT21.52 | Measurement Type | Inch |
Product Features
| Family Description | Boring bars | Country of Origin | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". |
Shipping Info
Package Weight
0.346
Related Documentation
DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
