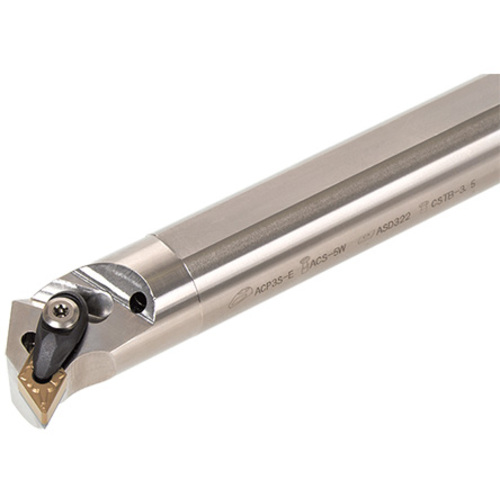

A16-ADUNL33-D20

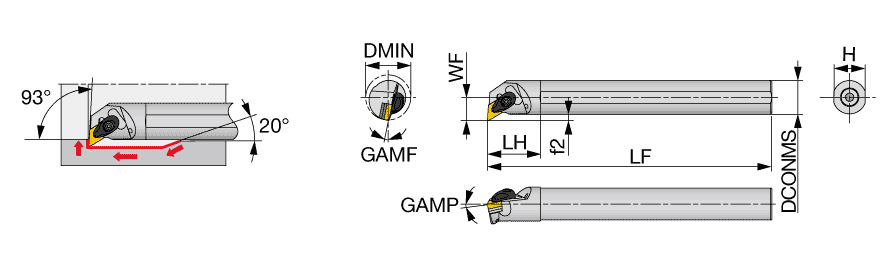

| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 12″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1-3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.906″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 0.672″ | Body Material | Steel |
| Master Insert Identification (MIID) | DNMG332 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1-1/4″ |
Product Features
| Family Description | Double-clamp boring bar, for negative 55 deg rhombic inserts DN**33... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
2.416
