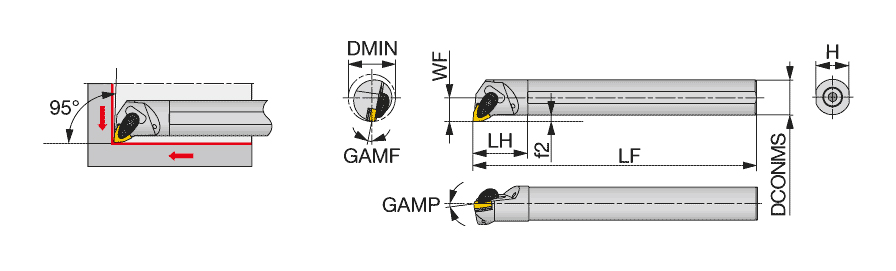

A20-AWLNL33-D25
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 14″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1.938″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.188″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 0.859″ | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG332 | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1.56″ |
Product Features

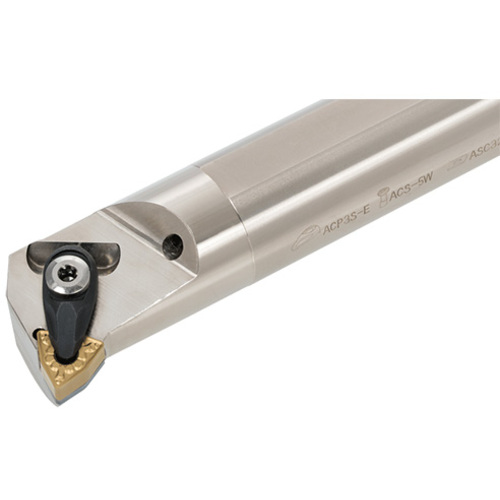

| Family Description | Double-clamp boring bar, for negative 80 deg trigon inserts WN**33... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
4.409
