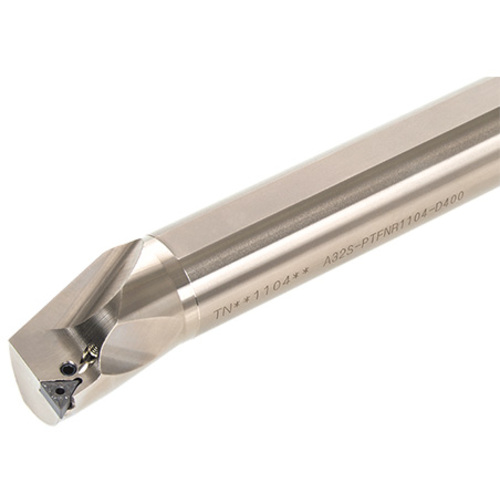

A25R-PTFNL1104-D320

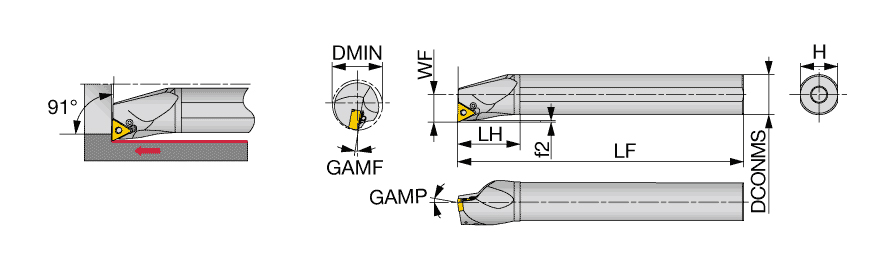

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 200 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 45 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | TOOLHOLDERS - FOR BORING |
| Master Insert Identification (MIID) | TNMG110408E | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock boring bar, for negative triangle inserts TN**1104... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.470
