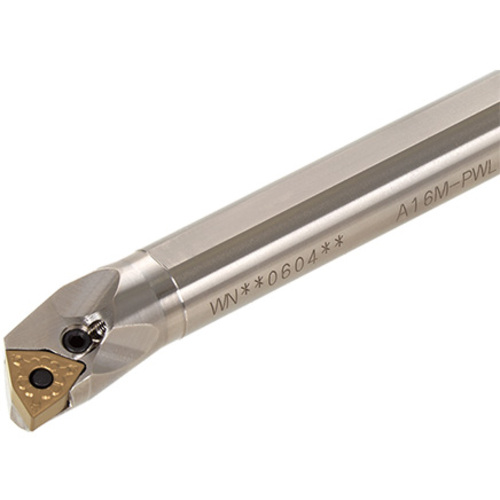

A20Q-PWLNL0604-D250

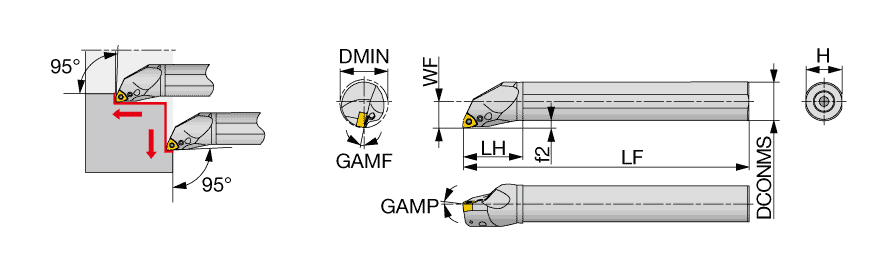

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | For 80deg Trigon insert | |
| Functional Length (LF) | 180 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 36 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 13 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG060408 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 25 mm |
Product Features
| Family Description | Lever lock boring bar, for negative 80 deg trigon inserts WN**0604... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.833
