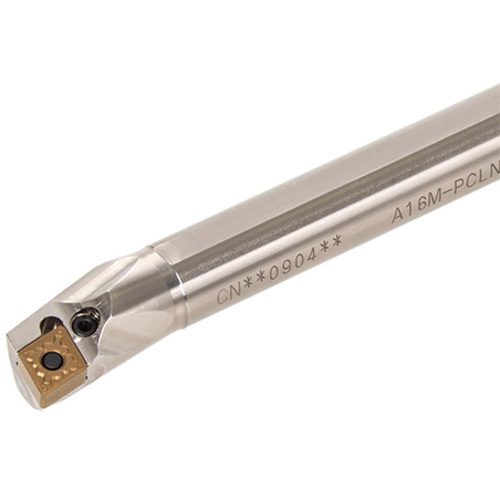

A16M-PCLNL0904-D200

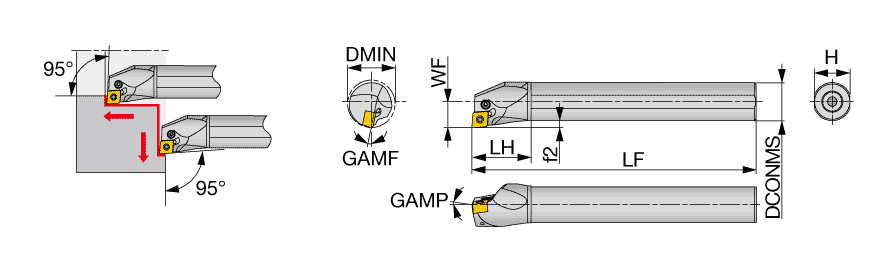

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNMG090408E | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm |
Product Features
| Family Description | Lever lock boring bar, for negative 80 deg rhombic inserts CN**0904... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.496
