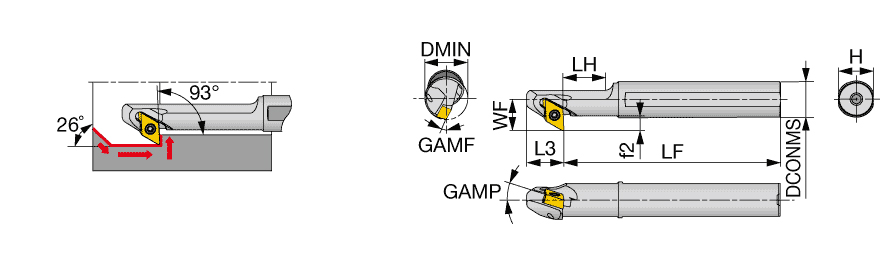

A08-SDZXR2-D10
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Frontal Edge Angle | 3 |
| Head Length (LH) | 1-1/8″ | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 0.475″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 0.438″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DXGU221R | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 5/8″ | Measurement Type | Inch |
Product Features

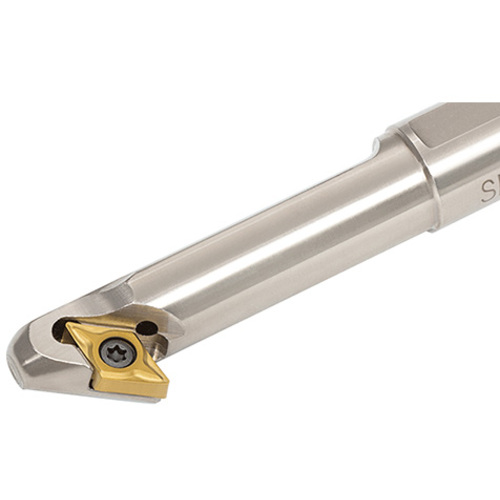

| Family Description | Screw-on boring bar for 55 deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the right hand toolholders (SDZXR07 D**), and the left hand insert (L) is used for the left hand toolholders (SDZXL07 D**). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.311
