1QP-16ER60-014-SP BX330

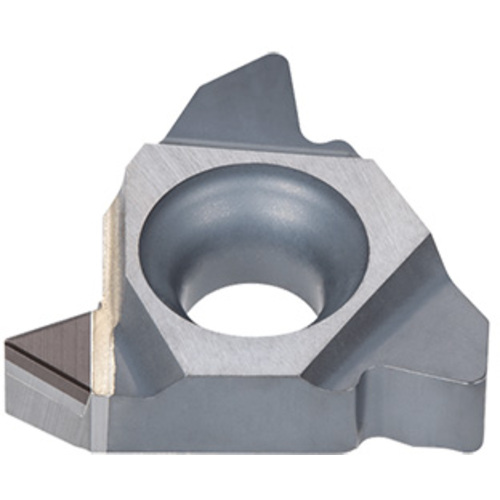

Laydown Threading Insert ; 3/8″ IC ; PCBN ; BX330 ; Uncoated
| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 13 |
| Corner Radius (RE) | 0.0055″ | Threads per Inch Maximum (TPIX) | 20 |
| Grade | BX330 | Thread Pitch Minimum (TPN) | 1 mm |
| Coating | Uncoated | Thread Pitch Maximum (TPX) | 2 mm |
| Cutting Edge Material | PCBN | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Applicable Material | | Hard Materials | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.028″ |
| Cutting Item Count (CICT) | 1 |
Product Features
| Family Description | External 60 deg, Partial profile, CBN threading insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
