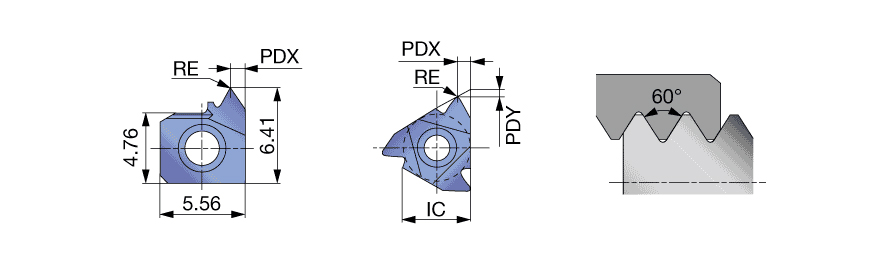

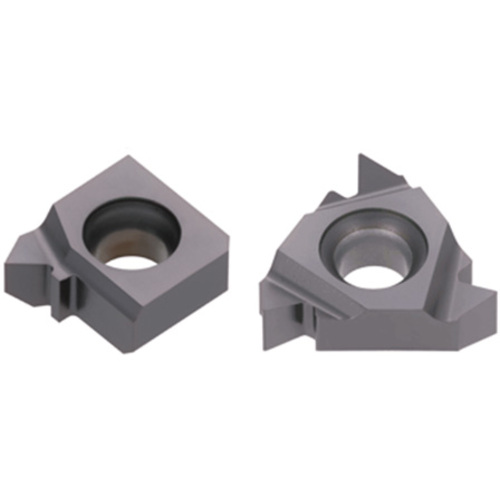

27IRZ60 T313V
Laydown Threading Insert ; 5/8″ IC ; Carbide ; T313V ; TiCN+Al2O3+TiN
| Inscribed Circle Diameter (IC) | 5/8″ | Threads per Inch Minimum (TPIN) | 4 |
| Corner Radius (RE) | 0.011″ | Threads per Inch Maximum (TPIX) | 6 |
| Grade | T313V | Thread Pitch Minimum (TPN) | 4 mm |
| Coating | TiCN+Al2O3+TiN | Thread Pitch Maximum (TPX) | 6 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Cutting Item Count (CICT) | 3 | Profile Distance EY (PDY) | 0.087″ |
Product Features
| Family Description | Internal 60deg, Partial profile | Country of Origin | JAPAN |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.267
