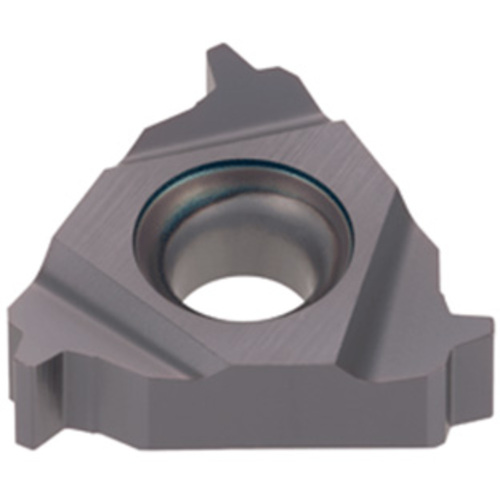

22IR40TR AH725
Laydown Threading Insert ; 4 mm TP ; 6.3 TPI ; 1/2″ IC ; Carbide ; AH725 ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 4 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 6.3 | Cutting Item Count (CICT) | 3 |
| Grade | AH725 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |

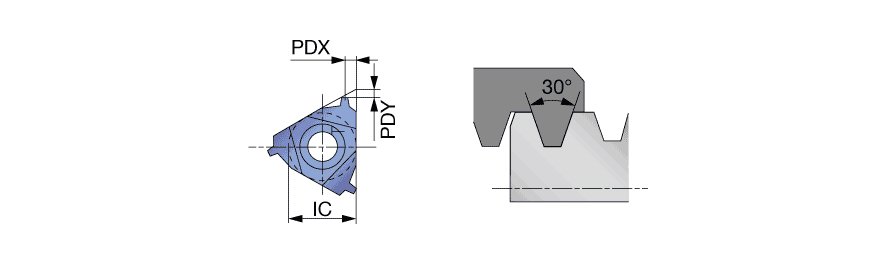

| Application | | Inserts | | Profile Distance EY (PDY) | 0.079″ |
Product Features
| Family Description | Internal ISO 30deg Trapezoidal | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.159
