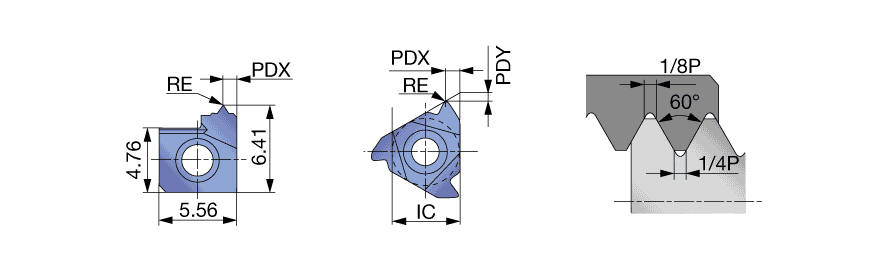

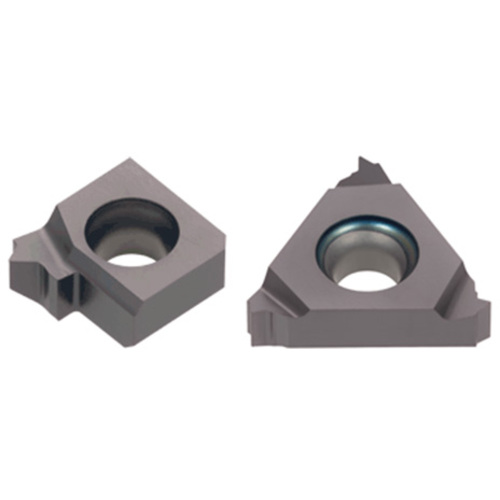

11IR15ISO TH10
Laydown Threading Insert ; 1.5 mm TP ; 16.9 TPI ; 1/4″ IC ; Carbide ; TH10 ; Uncoated
| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 16.9 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0043″ | Tool Type | Threading Regular Inserts |
| Grade | TH10 | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.028″ |
| Application | | Inserts | |
Product Features
| Family Description | Internal ISO metric, Full profile | Country of Origin | Japan |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.009
