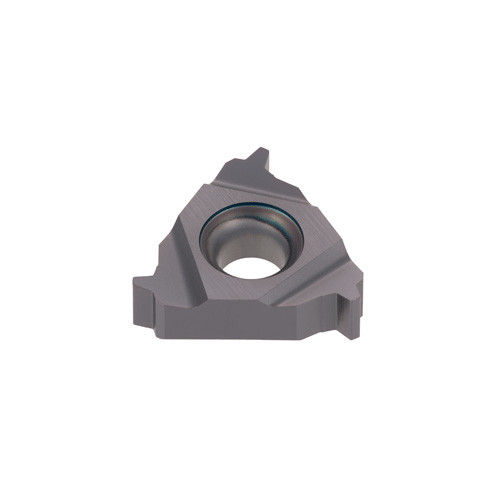

22ER40TR T313V
Laydown Threading Insert ; 4 mm TP ; 6.3 TPI ; 1/2″ IC ; Carbide ; T313V ; TiCN+Al2O3+TiN

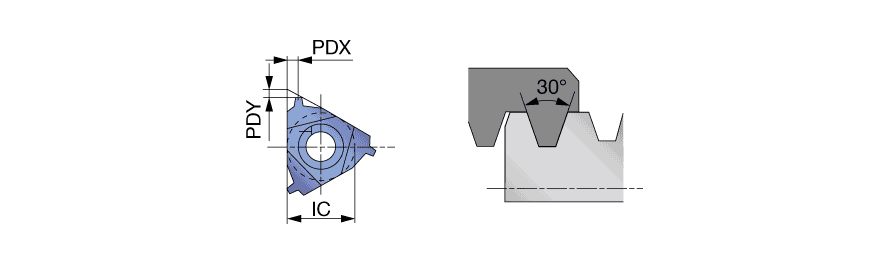

| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 4 mm | Cutting Item Count (CICT) | 3 |
| Threads per Inch (TPI) | 6.3 | Tool Type | Threading Regular Inserts |
| Grade | T313V | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.079″ |
| Application | | Inserts | |
Product Features
| Family Description | External ISO 30degTrapezoidal | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.163
