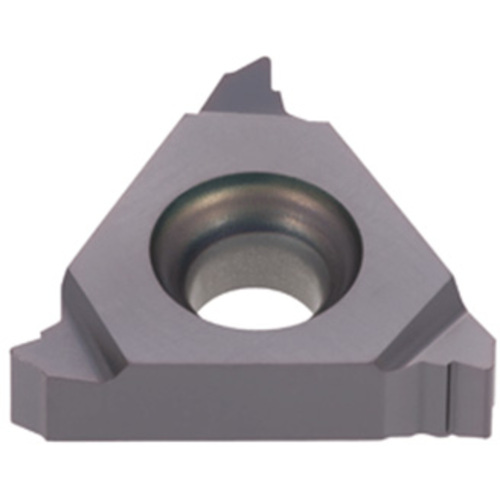

16ER12UN T313V
Laydown Threading Insert ; 2.117 mm TP ; 12 TPI ; 3/8″ IC ; Carbide ; T313V ; TiCN+Al2O3+TiN

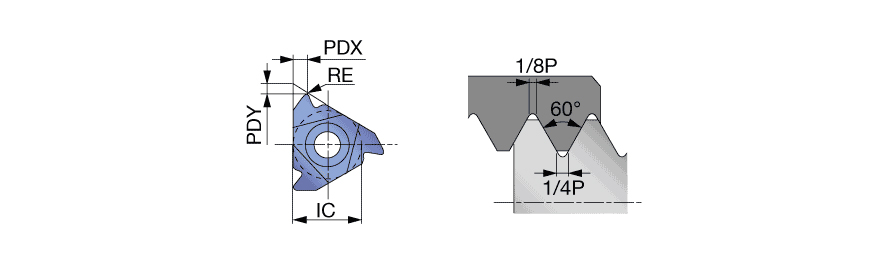

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Item Count (CICT) | 3 |
| Thread Pitch (TP) | 2.117 mm | Threads per Inch Minimum (TPIN) | 12 |
| Threads per Inch (TPI) | 12 | Threads per Inch Maximum (TPIX) | 12 |
| Corner Radius (RE) | 0.0106″ | Thread Pitch Minimum (TPN) | 2.117 mm |
| Grade | T313V | Thread Pitch Maximum (TPX) | 2.117 mm |
| Coating | TiCN+Al2O3+TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.047″ |
Product Features
| Family Description | External UN, Full profile | Country of Origin | Japan |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.015
