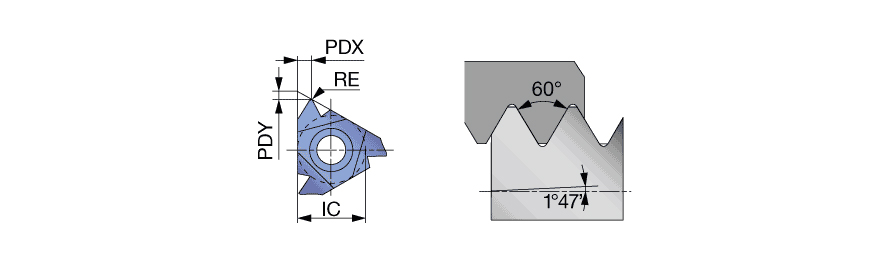

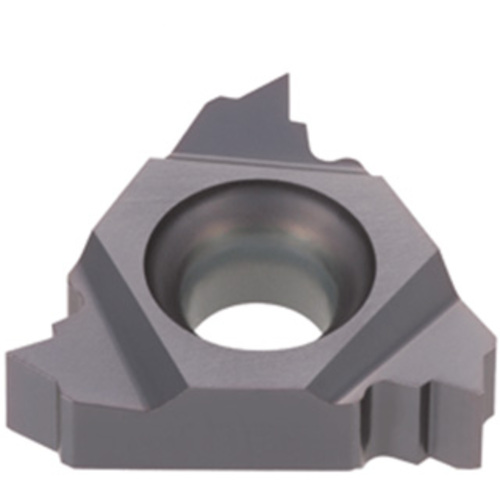

16ER14NPT-M AH8015
Laydown Threading Insert ; 1.814 mm TP ; 14 TPI ; 3/8″ IC ; Carbide ; AH8015 ; AlTiN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.814 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0031″ | Tool Type | Threading Regular Inserts |
| Grade | AH8015 | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.047″ |
| Application | | Inserts | |
Product Features
| Family Description | External NPT, Full profile | Country of Origin | JAPAN |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
