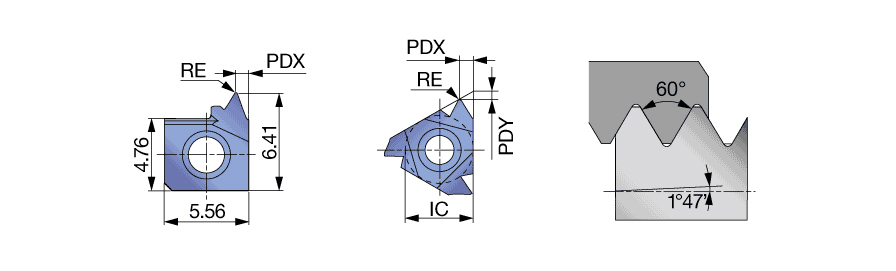

16IR14NPT-M NS9530

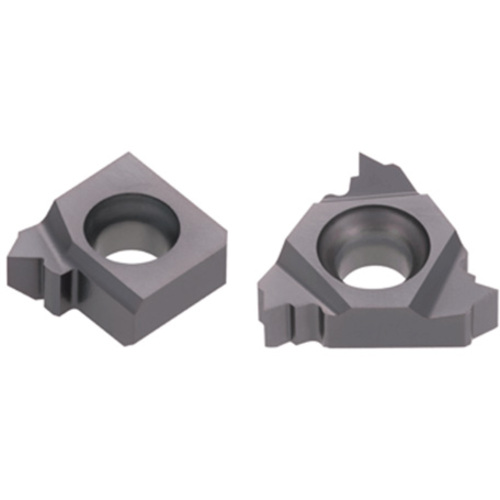

Laydown Threading Insert ; 1.814 mm TP ; 14 TPI ; 3/8″ IC ; Cermet ; NS9530 ; Uncoated
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Thread Pitch (TP) | 1.814 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0031″ | Tool Type | Threading Regular Inserts |
| Grade | NS9530 | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Cermet | Profile Distance EY (PDY) | 0.047″ |
| Application | | Inserts | |
Product Features
| Family Description | Internal NPT, Full profile | Country of Origin | JAPAN |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.049
