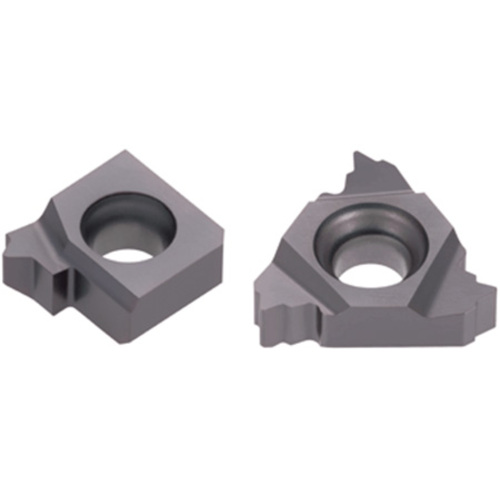

16IR11PT-M NS9530
Laydown Threading Insert ; 2.309 mm TP ; 11 TPI ; 3/8″ IC ; Cermet ; NS9530 ; Uncoated

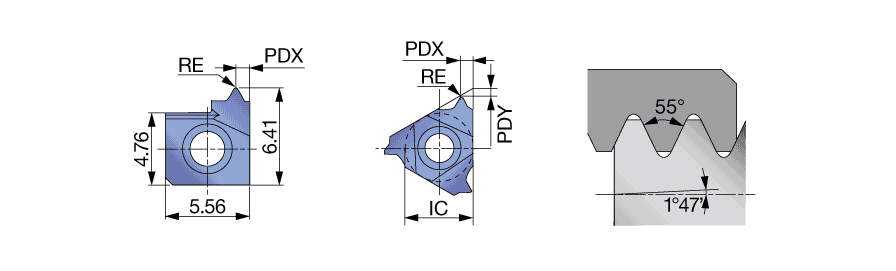

| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Thread Pitch (TP) | 2.309 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0126″ | Tool Type | Threading Regular Inserts |
| Grade | NS9530 | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Cermet | Profile Distance EY (PDY) | 0.047″ |
| Application | | Inserts | |
Product Features
| Family Description | Internal PT, Full profile | Country of Origin | JAPAN |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.049
