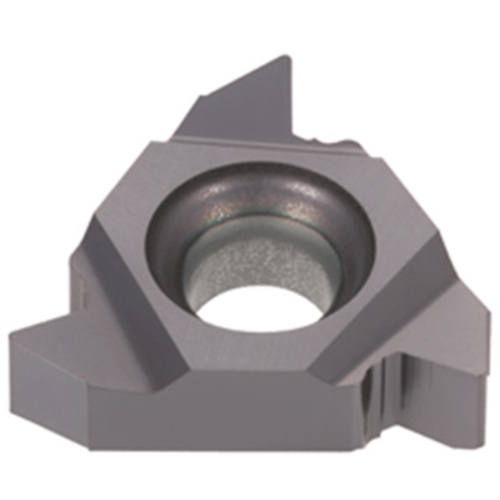

16ERG60-M NS9530
Laydown Threading Insert ; 3/8″ IC ; Cermet ; NS9530 ; Uncoated

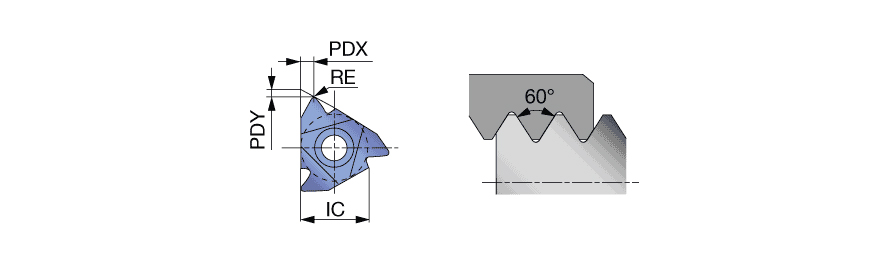

| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 8 |
| Corner Radius (RE) | 0.0087″ | Threads per Inch Maximum (TPIX) | 14 |
| Grade | NS9530 | Thread Pitch Minimum (TPN) | 1.75 mm |
| Coating | Uncoated | Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Edge Material | Cermet | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.047″ |
| Cutting Item Count (CICT) | 3 |
Product Features
| Family Description | External 60deg, Partial profile | Country of Origin | JAPAN |
| Remarks | B: With chip breaker (Basic selection) M: With chip breaker |
Shipping Info
Package Weight
0.046
