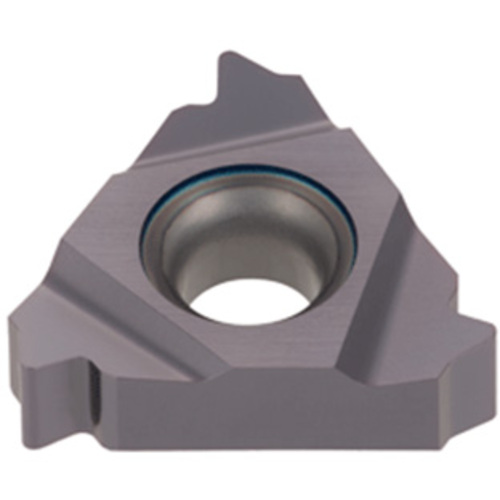

22IR8RAPI-2T AH725
Laydown Threading Insert ; 3.175 mm TP ; 8 TPI ; 1/2″ IC ; Carbide ; AH725 ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 3.175 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 8 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0169″ | Tool Type | Threading Regular Inserts |
| Grade | AH725 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |

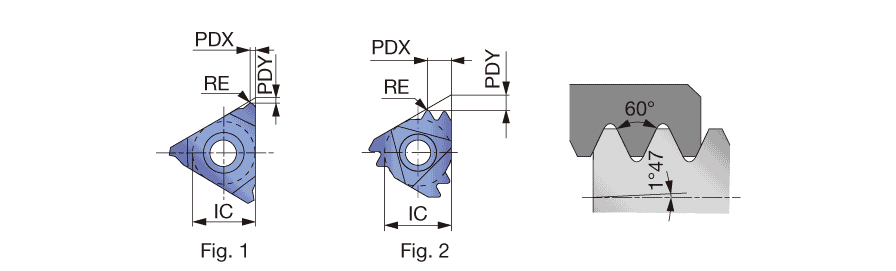

| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.118″ |
| Application | | Inserts | |
Product Features
| Family Description | Internal API Round | Country of Origin | JAPAN |
| Remarks | CB: With chip breaker |
Shipping Info
Package Weight
0.256
