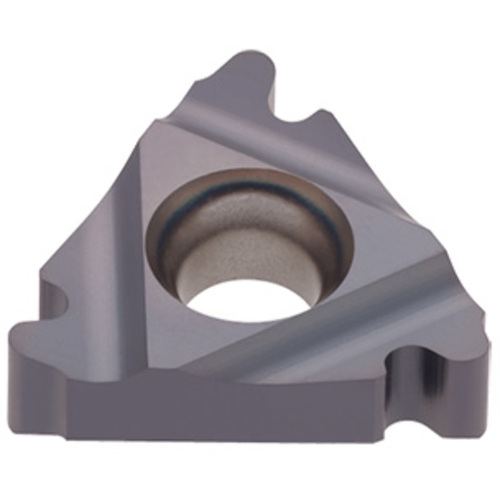

16ER6RD-B AH725
Laydown Threading Insert ; 4.233 mm TP ; 6 TPI ; 3/8″ IC ; Carbide ; AH725 ; TiAlN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 4.233 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 6 | Cutting Item Count (CICT) | 3 |

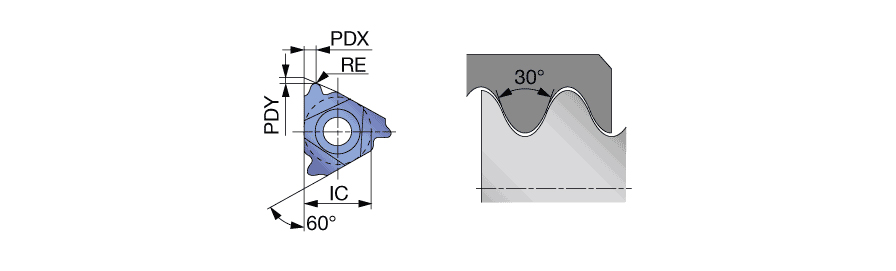

| Corner Radius (RE) | 0.0398″ | Tool Type | Threading Regular Inserts |
| Grade | AH725 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.059″ |
| Application | | Inserts | |
Product Features
| Family Description | External Round (DIN405), full-profile inserts | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.073
