11ERA55 AH725

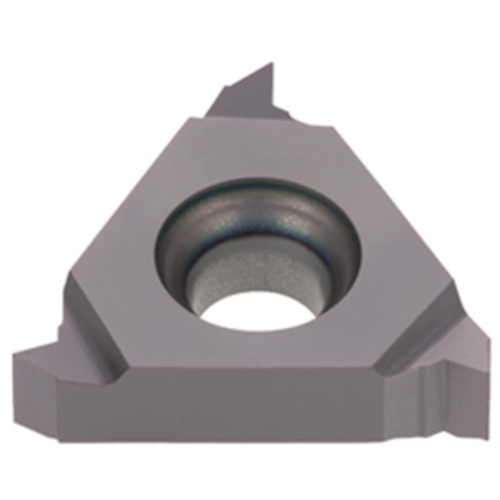

Laydown Threading Insert ; 1/4″ IC ; Carbide ; AH725 ; TiAlN

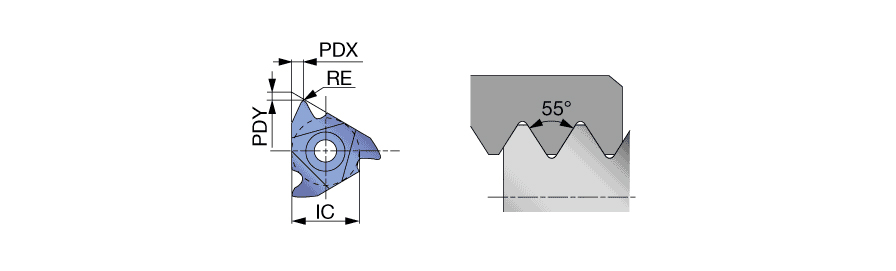

| Inscribed Circle Diameter (IC) | 1/4″ | Threads per Inch Minimum (TPIN) | 16 |
| Corner Radius (RE) | 0.002″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | AH725 | Thread Pitch Minimum (TPN) | 0.5 mm |
| Coating | TiAlN | Thread Pitch Maximum (TPX) | 1.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.031″ |
| Cutting Item Count (CICT) | 3 |
Product Features
| Family Description | External 55deg, Partial profile | Country of Origin | Israel |
Shipping Info
Package Weight
4
