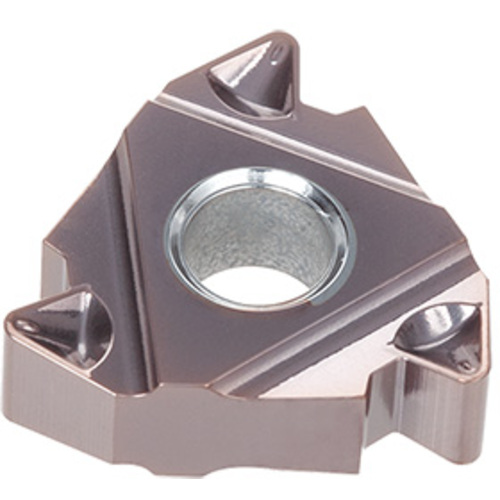

LDS54435FT-CB#4 AH725
Laydown Threading Insert ; 6.35 mm TP ; 4 TPI ; 5/8″ IC ; Carbide ; AH725 ; TiAlN

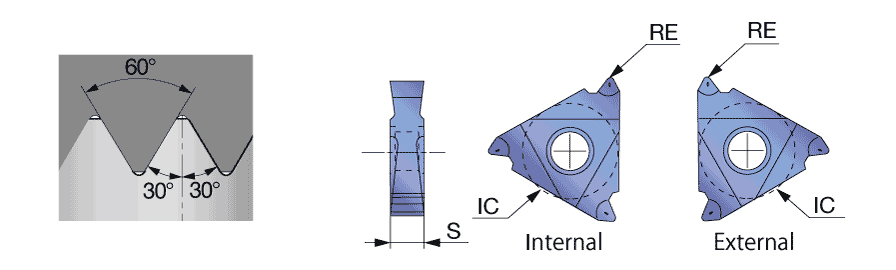

| Inscribed Circle Diameter (IC) | 5/8″ | Application | | Inserts | |
| Thread Pitch (TP) | 6.35 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 4 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0252″ | Cutting Item Count (CICT) | 3 |
| Insert Thickness (S) | 0.252″ | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | V-0.050 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Ext. & Int. double-sided laydown inserts for API Rotary shoulder connection, full profile | Country of Origin | USA |
Shipping Info
Package Weight
0.461
