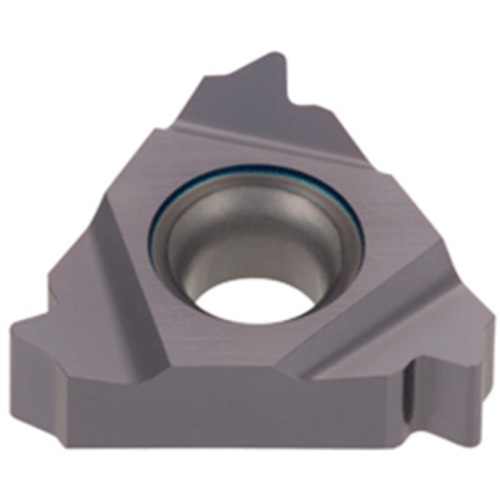

16ER8RD-CB AH725
Laydown Threading Insert ; 3.175 mm TP ; 8 TPI ; 3/8″ IC ; Carbide ; AH725 ; TiAlN

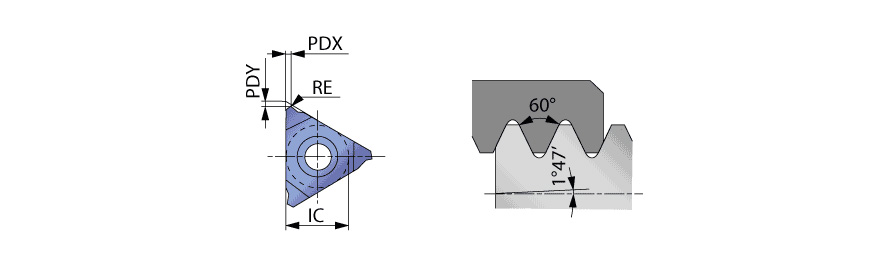

| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 3.175 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 8 | Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.0169″ | Tool Type | Threading Regular Inserts |
| Grade | AH725 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.059″ |
| Application | | Inserts | |
Product Features
| Family Description | External API Round | Country of Origin | USA |
| Remarks | CB: With chip breaker |
Shipping Info
Package Weight
0.143
