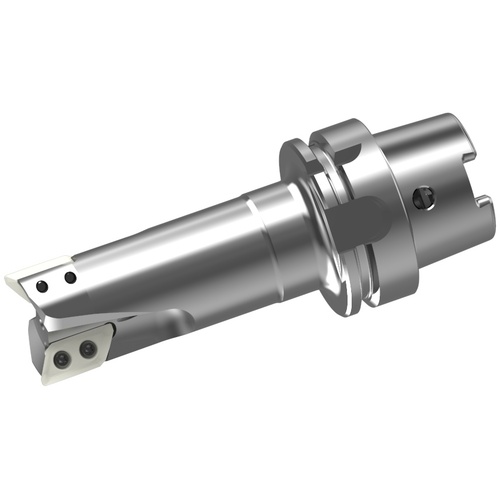

AXD7000R04002A-H63A MILL
Indexable End Mill; 40 mm Dia. × 21 mm LOC × 63 mm Shank Dia. × 85 mm LU ; 2 FL ; 90 Degrees ; Series AXD7000
| Cutting Diameter (DC/DCX) | 40 mm | Usable Length (LU) | 85 mm |
| Cutting Diameter (DC) | 40 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 13 Degrees | Series/List # | AXD7000 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Functional Length (LF) | 132 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
