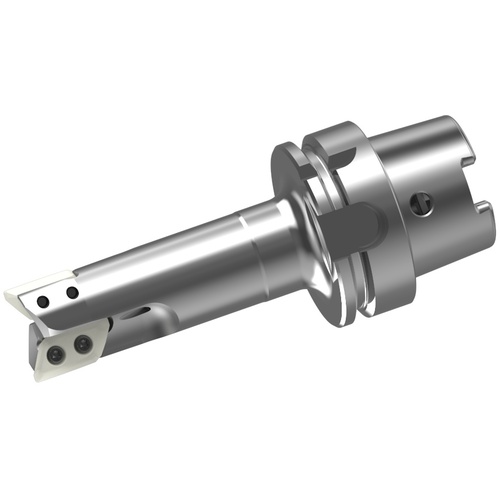

AXD7000R03202A-H63A MILL
Indexable End Mill; 32 mm Dia. × 21 mm LOC × 63 mm Shank Dia. × 80 mm LU ; 2 FL ; 90 Degrees ; Series AXD7000
| Cutting Diameter (DC/DCX) | 32 mm | Usable Length (LU) | 80 mm |
| Cutting Diameter (DC) | 32 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 19 Degrees | Series/List # | AXD7000 |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Functional Length (LF) | 127 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.999
