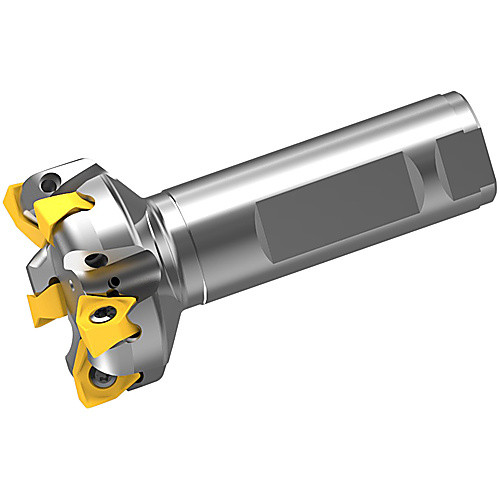

WWX400UR4005FA20M INDX EM
Indexable End Mill; 2-1/2″ Dia. × 0.323″ LOC × 1-1/4″ Shank Dia. ; 90 Degrees ; Series WWX400_INCH
| Cutting Diameter (DC/DCX) | 2-1/2″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 2-1/2″ | Functional Length (LF) | 4-3/4″ |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.323″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.26 Degrees | Series/List # | WWX400_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
