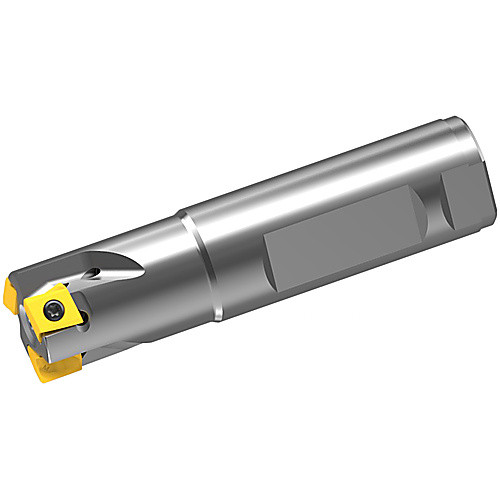

VPX300UR2003FA20S INDX EM
Indexable End Mill; 1-1/4″ Dia. × 0.433″ LOC × 1-1/4″ Shank Dia. ; 3 FL ; 90 Degrees ; Series VPX300_INCH
| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 5-1/8″ |
| Cutting Diameter (DC) | 1-1/4″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.49 Degrees | Series/List # | VPX300_INCH |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Head Length (LH) | 2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
