SRM2160SAM INDX EM

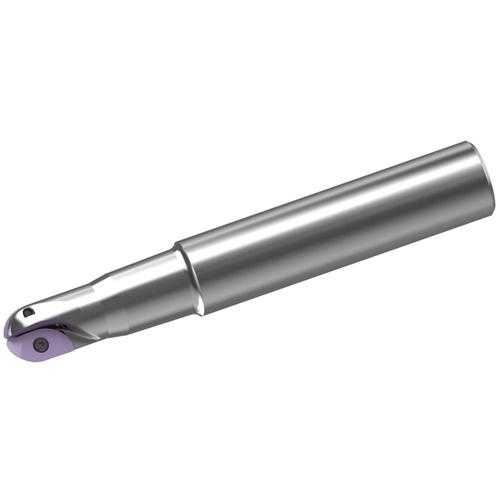

Indexable End Mill; 16 mm Dia. × 12 mm LOC × 20 mm Shank Dia. × 25 mm LU ; 2 FL ; Series SRM2
| Cutting Diameter (DC/DCX) | 16 mm | Usable Length (LU) | 25 mm |
| Cutting Diameter (DC) | 16 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | SRM2 |
| Head Length (LH) | 50 mm | Measurement Type | Metric |
| Functional Length (LF) | 130 mm |
Product Features
| Country of Origin | Japan |
