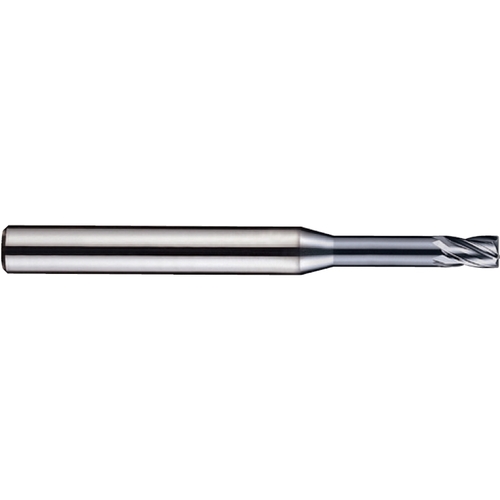

Corner Radius End Mill; 3 mm Dia. × 4.5 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 4 FL ; Carbide ; AlCrN ; Series SEME64
| Cutting Diameter (DC) | 3 mm | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 60 mm | Neck Diameter (DN) | 2.85 mm |
| Cutting Edge Material | Carbide | Style | Corner Radius with Long Neck |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | SEME64 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.189
Package Width
0.5118
Package Height
0.5118
Package Weight
0.046
