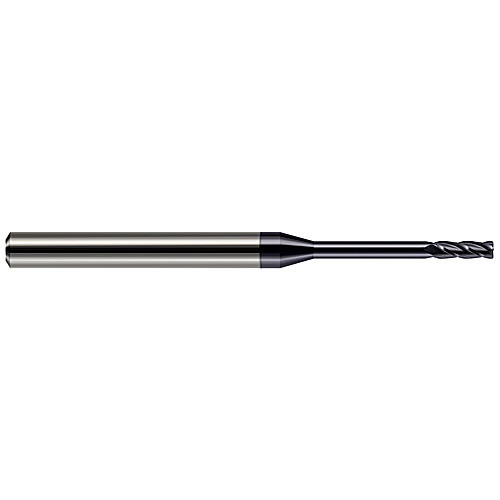

4FL 1/16x.0100″ AlTiN
SQ End Mill; 1/16″ Dia. × 0.186″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 0.01″ RE ; 4 FL ; 5/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 0.186″ | Neck Diameter (DN) | 0.0605″ |
| Overall Length (OAL) | 2″ | Neck Length (LN) | 0.439″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | AlTiN | Length Group | 3D |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.0625″ |
| End Shape | Corner Radius | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.014
