4FL 1/8x.0100″X3/8 LOC

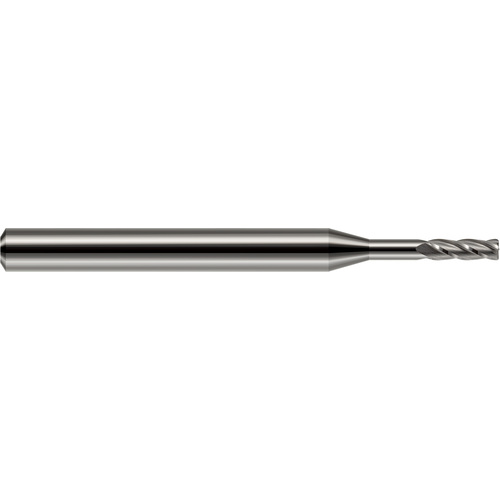

Corner Radius End Mill; 1/8″ Dia. × 3/8″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.01″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Neck Diameter (DN) | 0.121″ |
| Overall Length (OAL) | 2″ | Neck Length (LN) | 3/8″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Length Group | 3D |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| End Shape | Corner Radius | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.014
