4FL 1/8x.0200″ AlTiN

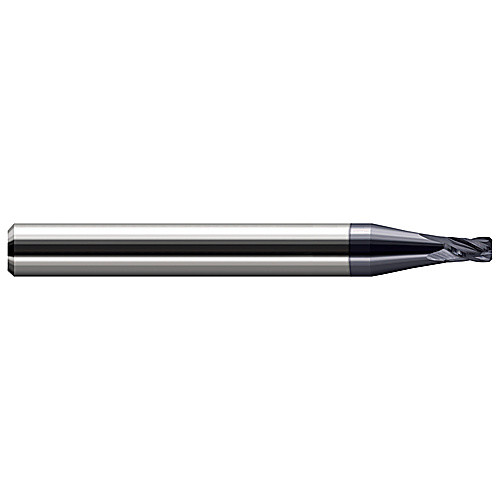

SQ End Mill; 1/8″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Chamfer Width (CHW) | 0.02″ |
| Depth of Cut Maximum (APMX) | 3/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 1-1/2″ | Length Group | 1.5D |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
