3FL 5/64x.0050″X.4750″

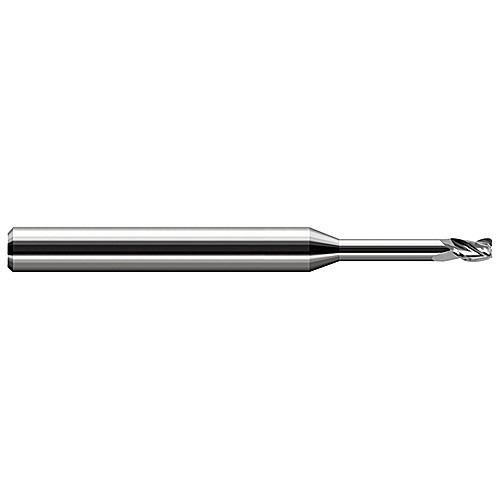

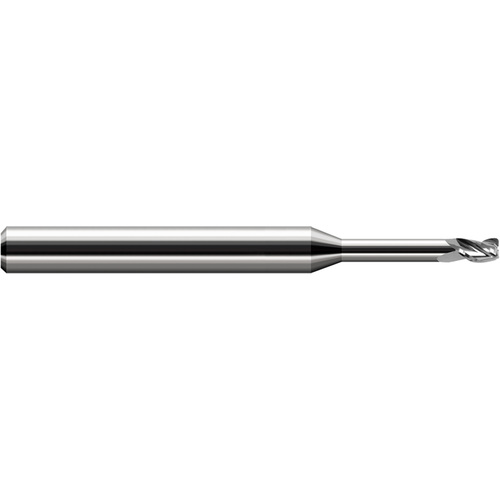

SQ End Mill; 5/64″ Dia. × 0.117″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 0.005″ RE ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5/64″ | Usable Length (LU) | 0.475″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.005″ |
| Depth of Cut Maximum (APMX) | 0.117″ | Neck Diameter (DN) | 0.0765″ |
| Overall Length (OAL) | 2-1/2″ | Neck Length (LN) | 0.358″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | Uncoated | Length Group | 1.5D |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.0781″ |
| End Shape | Corner Radius | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.017
