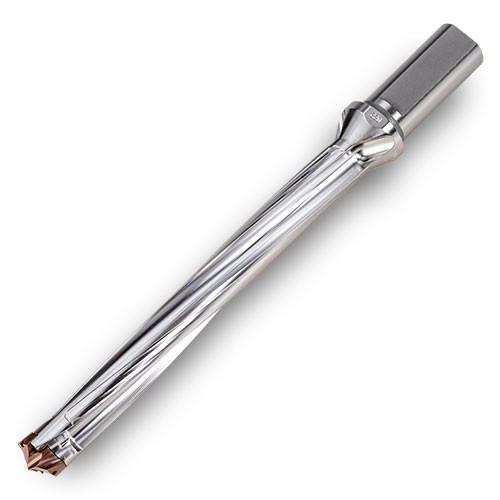

FD1250100C0R01
| Usable Length (LU) | 4.09″ | Functional Length (LF) | 4.66″ |
| Application | | Drill Mill | Drilling | | Shank Length (LS) | 1.89″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 12.5 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.4921″ | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Maximum (DCX) | 0.5079″ |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.408
