VPX200UR1402AM1030 EM

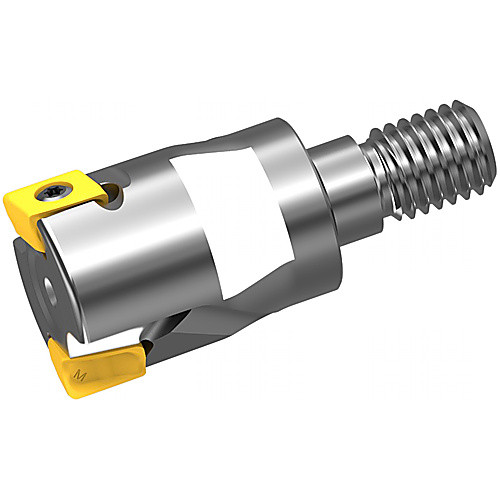

Indexable End Mill; 7/8″ Dia. × 0.315″ LOC × 0.413″ Shank Dia. × 1.929″ OAL ; 2 FL ; 90 Degrees ; Series VPX200_INCH
| Cutting Diameter (DC/DCX) | 7/8″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 7/8″ | Body Diameter (BD) | 0.728″ |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.929″ | Series/List # | VPX200_INCH |
| Ramping Angle Maximum (RMPX) | 1.14 Degrees | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.413″ | Connection Retention Knob Thread Size (CRKS) | M10 |
| Functional Length (LF) | 1.181″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.999
