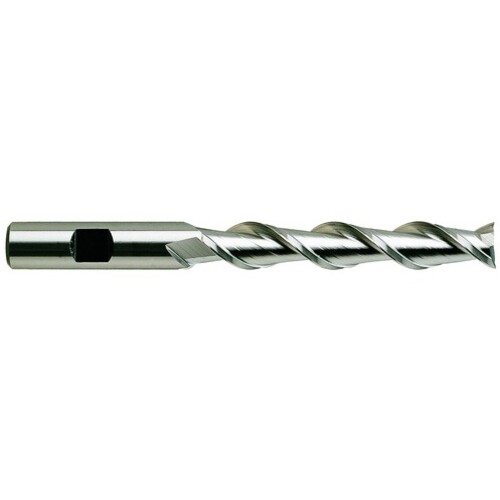

Square End Mill; 1″ Dia. × 6″ LOC × 1″ Shank Dia. × 8-1/2″ OAL ; 2 FL ; HSS ; Bright ; Series E1072
SQ End Mill; 1″ Dia. × 6″ LOC × 1″ Shank Dia. × 8-1/2″ OAL ; 2 FL ; HSS ; Uncoated ; Series E1072
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 6″ | Tool Type | 2FL SE HSS, 42 Degrees Helix Extra Long Length for Aluminum |
| Overall Length (OAL) | 8-1/2″ | Length Group | Extra Long |
| Cutting Edge Material | HSS | Decimal Equivalent | 1″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E1072 |
| Flute Helix Angle (FHA) | 42 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
9.5
Package Width
1.5
Package Height
1.5
Package Weight
1.393
