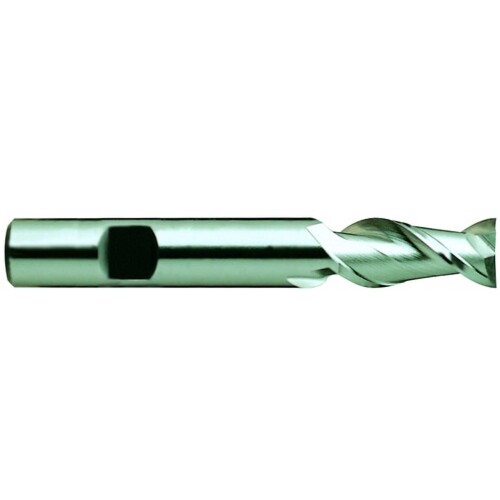

Square End Mill; 1″ Dia. × 1-7/8″ LOC × 3/4″ Shank Dia. × 4-1/8″ OAL ; 2 FL ; HSS ; Bright ; Series E1070
SQ End Mill; 1″ Dia. × 1-7/8″ LOC × 3/4″ Shank Dia. × 4-1/8″ OAL ; 2 FL ; HSS ; Uncoated ; Series E1070
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1-7/8″ | Tool Type | 2FL SE HSS, 42 Degrees Helix Regular Length for Aluminum |
| Overall Length (OAL) | 4-1/8″ | Length Group | Regular |
| Cutting Edge Material | HSS | Decimal Equivalent | 1″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E1070 |
| Flute Helix Angle (FHA) | 42 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
0.621
